Thông tin chi tiết sản phẩm:
|
| Phương pháp làm mát: | Không khí mát mẻ | Phương pháp bức xạ: | Không quân |
|---|---|---|---|
| Nhiệt độ/độ ẩm môi trường: | -20 đến 60°C | Công suất làm mát: | 35w |
| Nguồn đầu vào: | 50W | Công suất sưởi ấm: | 85W |
| Quạt bên nóng/lạnh hiện tại: | 0,24/0,20 A | TEM danh nghĩa/dòng khởi động: | 3,9/5,0A |
| Điện áp danh định/tối đa: | 24/30 VDC | Kích thước tổng thể: | 120mm x 102mm x 143mm |
| Cân nặng: | 1,3kg | Thời gian sống: | >=70.000 giờ |
| Sức chịu đựng: | 10% |

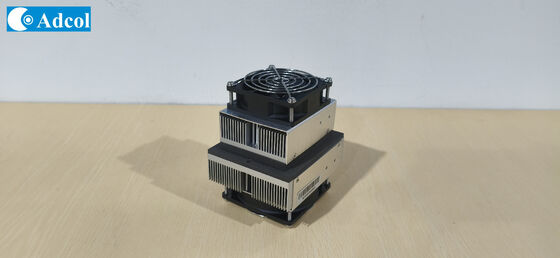

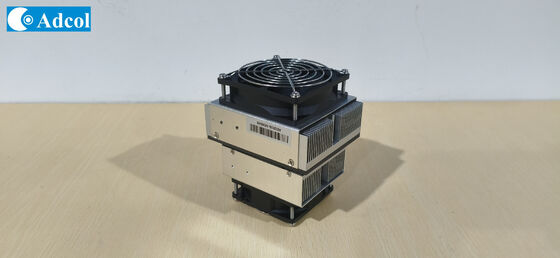

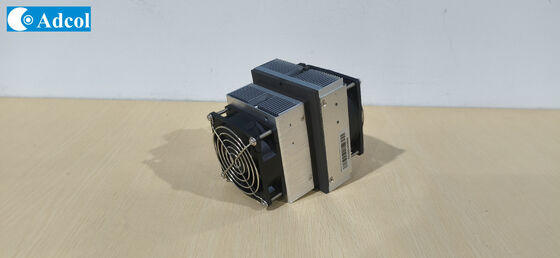

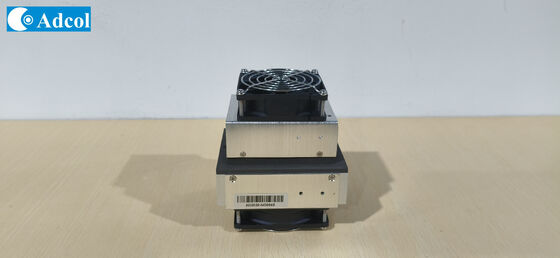

ATA035-12VDC Air to air thermoelectric Cooler Assembly 1.Product Introduction The ATA035-12 TE Cooler is an air-to-air thermoelectric cooling module with 12V DC input and 35W cooling power. It adopts dual fans for cold and hot sides. Operating temperature ranges from -10 to 55℃, weight 1.1kg. No refrigerant required, compact and easy to install, ideal for equipment temperature control and lab cooling. 2.Features 15W capacity rated at ΔT = 0ºC,Tambient = 30°C Refrigerant free
